It’s mini in a massive way

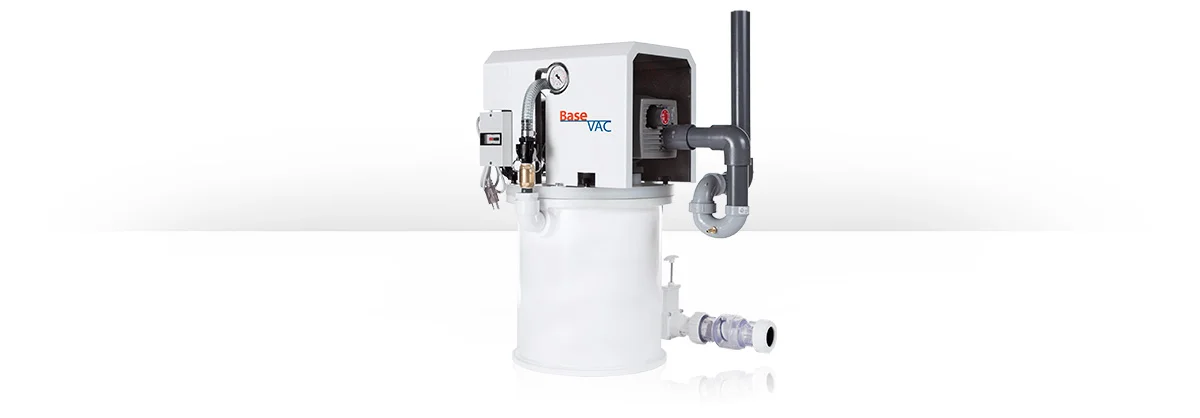

The M-Vac is an affordable powerhouse that packs the entire BaseVac experience into a compact integrated platform. It's designed to be the perfect plug & play replacement for wet ring pumps in smaller clinics. All you need to do is install it, set it, and forget it.

At only 30" tall and 17" wide it keeps a low profile without sacrificing functionality. With a vacuum this compact, the only question is what to do with all that free space in your utility room.

  • Same industry leading vacuum capacity found on our large scale custom systems
  • Dependable, efficient, and quiet rotary vane technology
  • Easy service access
  • Remote start & stop capabilities available on 2M models

Model2M 4.10-1152M 4.16-2202M 4.25-220
Max (HV) Users122.5
Operatories123
Hp0.60.941.2
Amps7.65.28.8
Volts110V, 1 Phase220V, 1 Phase220V, 1 Phase
dB646767
LxWxH17"x17"x30"17"x17"x30""17"x17"x39"
Lbs728698
Air Water SeperatorBuilt InBuilt InBuilt In



All systems offer up to 25" Hg

Inlet: 1.50” Hose Barb
Drain Outlet: 1.50” Plastic Pipe

NOTE:

  • Remote start capability built in for 2M series - remote switch not included.
  • Exhaust Kit includes piping from pump with P-Trap, drain and 23 inches schedule 80 1 ¼ inch pipe. Inlet Kit includes hose and fittings from air water separator to vacuum pump.
  • As with all dry vac suction systems a drip leg is recommended on the exhaust line to prevent condensate return to the pump and is included with all systems.
