Small, powerful & Perma Dry.

You’ve grown to love the power, efficiency & dependability of our dry vacuum systems. Now it’s time to see how we have brought that engineering to our oil-free compressors. Our engineers have designed our compressors for years of reliable service with performance you can trust. A heavy duty block, durable cast cylinders, forged steel connecting rods, and precision machined aluminum pistons means you'll get the longevity you deserve from a compressor. And with a 100% oil free design and our patented Perma Dry self purging desiccant dryer you'll get the high-quality air you need.



ModelS0.75S1.5S2.0
Users1.534
Hp0.751.52.0
CFM3.10 @ 80PSI4.96 @ 80PSI6.57 @ 80PSI
Tank6 Gal13 Gal13 Gal
Electrical115V / 1 / 60Hz / 7.8A 220V / 1 / 60Hz / 8.5A220V / 1 / 60Hz / 9A
dB707274
L" x W" x H" 26" x 16" x 28"25" x 22" x 28"26" x 16" x 28"
lbs110132154
Part #288010328801062880109


S-Series Downloads

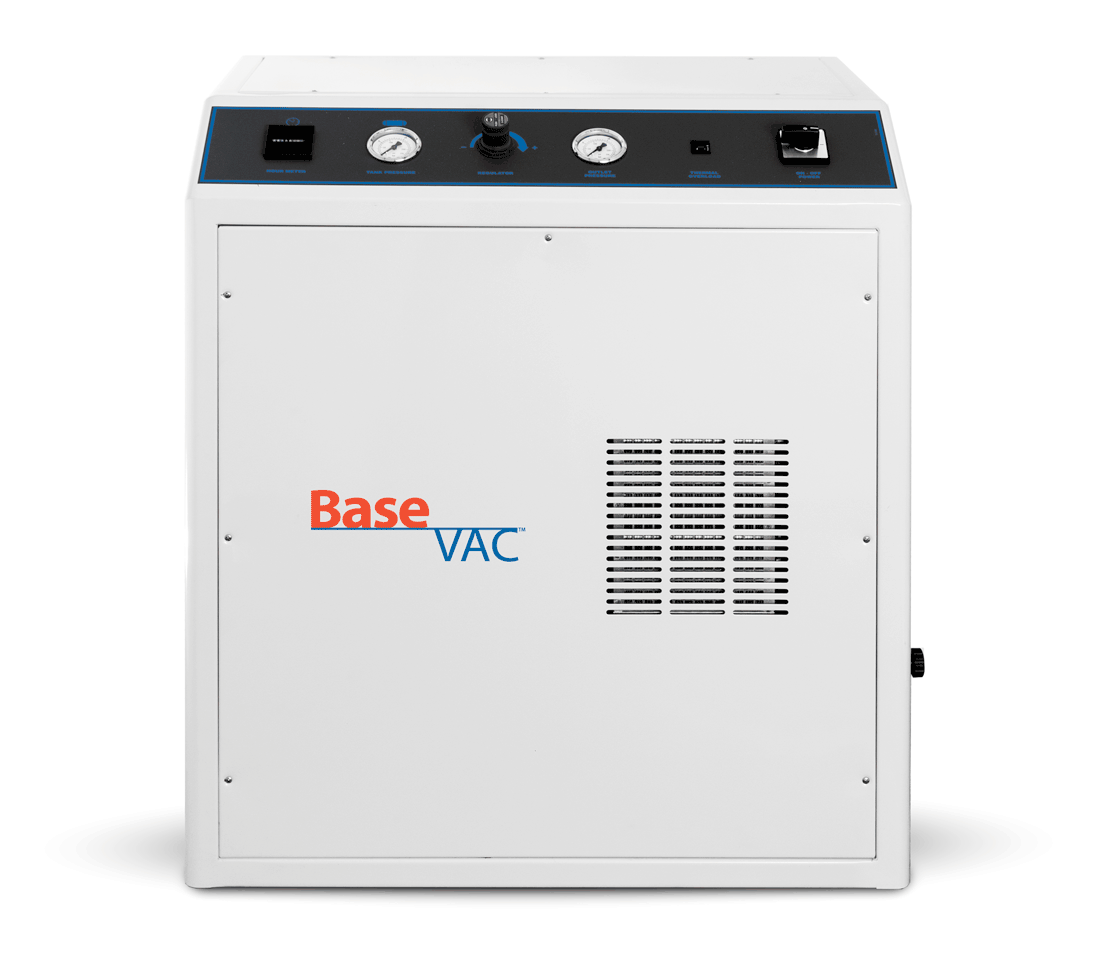

Sound Enclosure (optional):

  • Reduces noise by 20 dB for ultra-quiet operation.
  • Sturdy steel panels with sound absorbing foam insulation.
  • Ventilation ensures adequate cooling air flow.
  • Easy service access.
  • Only available for S0.75, S1.5 & S2 compressors.
  • Must be ordered at initial order. Cannot be retrofitted.





Exceptional Performance:

  • Energy efficient to keep your power bills low.
  • “Perma Dry” self purging desiccant dryer. Fan cooled heat exchanger pre cools air and removes moisture before final drying stage in desiccant dryer.
  • Consistent high quality oil free dry dental air.







Low Maintenance & Easy Service:

  • BaseVac dental compressors are built for years of reliable service with minimal service requirements.
  • Simple installation & easy to clean inlet filter.
  • Long desiccant life.
  • Long life piston rings and guide sleeve replace
  • guide rings in traditional compressors , easy to replace on site.







Superior Reliability:

  • Heavy duty block with durable cast cylinders, forged steel connecting rods, and precision machined aluminum pistons.
  • Efficient aluminum cooling cylinder with niploid plated steel sleeve for longevity and precision machined pistons.
  • Chemical niploid plating of cylinder provides extended life and quiet cool operation.
  • 100% oil free design. No chance of oil bypassing seals to contaminate your
    compressed air.
